Looking for a sanitary plate heat exchanger? Then JINFAN is just right.
We are a first class compact plate heat exchanger manufacturer & supplier. JINFAN's range of heat exchangers caters to a wide variety of hygienic applications, including food, dairy, beverages, biotech, pharmaceuticals, etc.
The stainless plate heat exchanger is essential equipment for sanitary industrial production. It consists of a set of stainless steel plates with holes for the passage of two fluids, through which the two fluids transfer heat. The two common grades of stainless steel are 316 and 304 for PHE plates & frames. The primary difference between them is the molybdenum content (around 2-3%), which provides SS316 with superior corrosion resistance.
✅ Corrosion resistance: Suitable for a variety of fluid media, including some corrosive media.
✅ High strength: withstands high temperatures and pressures.
✅ Hygienic: Stainless steel is safe and harmless for applications in food, beverage, and pharmaceuticals.
✅ High heat transfer efficiency: The unique corrugated design of the ss plate creates turbulent flow, enhancing heat transfer.

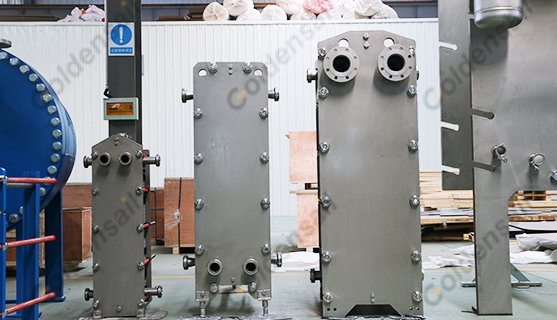

JINFAN stailess plate heat exchanger
Stainless plate heat exchangers are based on the fundamental physical laws of heat transfer: heat always transfers from the high-temperature fluid to the low-temperature fluid until equilibrium is reached.
In a stainless plate heat exchanger, two fluids of varying temperatures enter the heat exchanger at the inlet and are directed into alternating channels formed by adjacent plates. Each plate carries the hot fluid on one side and the cold fluid on the other, creating an alternating "hot, cold" pattern that prevents the fluids from mixing. The hot fluid outlet and the cold fluid inlet are located on the same side, maximizing heat transfer efficiency. The unique corrugated design of the stainless steel plates is key to the plate heat exchanger's high efficiency. The corrugated structure creates intense turbulence within the channels, significantly reducing the boundary layer near the plate surface, allowing for thorough mixing within the fluids and achieving a more uniform temperature throughout the channels, significantly improving the heat transfer coefficient and efficiency.
✅ Stainless steel has a high heat transfer coefficient and high heat transfer efficiency.
✅ Stainless steel has good corrosion resistance and is suitable for acid, alkali and other chemical fluid treatment
✅ At the same heat exchange efficiency, the footprint of the plate heat exchanger is much smaller than that of the shell and tube heat exchanger
✅ The plate heat exchanger can be disassembled and assembled to reduce the cleaning and maintenance costs
After years of research and development, our products have a wide range of applications worldwide. No matter your hygienic application, JINFAN has the perfect plate heat exchanger. Whether you're processing food, beverages, or pharmaceuticals. The 100% stainless steel design also enables possibilities for other high-pressure duties with high hygiene demands or aggressive media. We use materials that meet FDA standards and, with our extensive industry experience, design precise flow and temperature settings to ensure heat transfer efficiency and meet sanitary requirements. Our high-quality plates ensure product life and are committed to maximizing energy savings.
"CIP is easily accessible and can even be quickly disassembled for manual inspection and mechanical cleaning, ensuring no blind spots."
"JINFAN SS316L plate heat exchangers comply with Good Manufacturing Practice (GMP) and FDA requirements. Their stable operation gives us complete peace of mind."
| Plate Material | Suitable Media | ||||||
|---|---|---|---|---|---|---|---|
| Stainless Steel (304/316) | Pure Water, River Water, Edible Oil, Mineral Oil | ||||||
| Ti, Ti-Pd | Seawater, Brine, Salt Substance | ||||||
| 20Cr,18Ni,6Mo (254MO) | Dilute Sulfuric Acid, Dilute Salt Substance Aqueous Solution, Inorganic Aqueous Solution | ||||||
| Ni | High Temperature, High Density Caustic Soda | ||||||
| Hastelloy (C276, D205, B2G) | Concentrated Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid | ||||||
| Gasket Material | Operating Temperature | Suitable Media | |||||
|---|---|---|---|---|---|---|---|
| NBR | -20℃ to +110℃ | Water, sea water, mineral oil, salt, brine | |||||
| EPDM | -50℃ to +150℃ | Hot water steam, acid, alkali | |||||
| HNBR | -15℃ to +160℃ | High temperature, mineral oil, water | |||||
| VITONA/VITONG/FKM | -35℃-+180℃ | High temperature, high resistance, strong oxidant, oil, acid, alkali, etc | |||||
