Looking for high-quality PHE replacement spare parts? We have a strong inventory, Whether it is routine spare parts procurement or batch project support, we can provide fast response and global delivery services. Custom materials and designs are also available on request.
Plate Heat Exchangers
Other models of Plate Heat Exchanger Spare Parts
With many years of experience in R&D and manufacturing of heat exchange equipment, we are designed to produce perfect replacement plates & gaskets. It is made of high-quality materials that meet international standards and is stamped by precision molds. Whether you need to maintain or replace equipment or upgrade the system, JINFAN will be your ideal choice with both cost-effectiveness and reliability.
✅ We maintain stock for standard models and can ship worldwide with short lead times. Custom materials and designs are also available on request.
Request a Quote

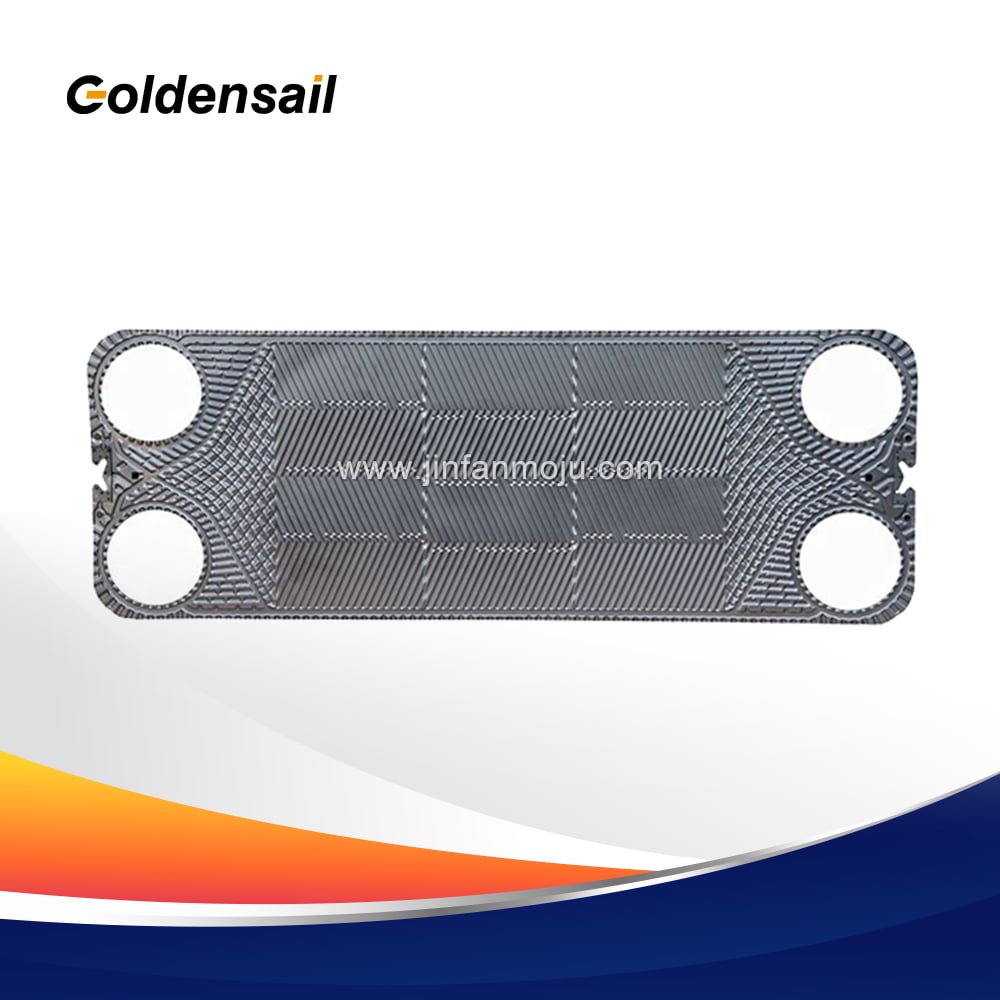

plates and gaskets details
| Specification Details | |
| Product Model | FAX30BW |
| Plate Material | ss304, 316L, Titanium, SMO254, Hastelloy C276, etc. |
| Plate Thickness | can be customized |
| Plate Dimensions (LxW) | 2214*915 |
| Gasket Material | NBR, EPDM, HNBR, VITONA/VITONG/FKM |
| Max. Design Pressure | Depends on plate thickness and frame |
| Max. Design Temperature | Depends on plate and gasket material |
✅ If you are unsure of the plate type on your current heat exchanger, please check the equipment nameplate or contact our technical support team and we will assist you in identification.
Q: What materials are available?
A: Common materials include stainless steel 304, 316 and titanium. Special materials such as SMO and Hastelloy can be customized.
Q: Can it be mixed with the original plate?
A: In principle, it can be mixed, but it is recommended to replace the whole set to ensure the same sealing and heat exchange effect.
Q: Does the plate come with a rubber gasket?
A: Yes, we can provide sealing gaskets that match this model. The optional materials include NBR, EPDM, Viton, etc.
Q: What if I am not sure about the model?
A: Take a photo and provide the plate size or heat exchanger nameplate information, and we can help confirm the model.
Q: How long is the delivery cycle?
A: Conventional materials are shipped within 7-10 working days, and the specific time for customized products depends on the order quantity.
Q: Does it support mold opening and customization of special models?
A: Support. We can customize non-standard models of plates according to drawings or samples, and have independent mold manufacturing capabilities.
