High Temperature High Pressure PHE Heat Exchanger Price

Looking for a plate frame heat exchanger for chemical

We are a first class plate heat exchanger manufacturer & supplier. Our innovative heat exchanger plate designs enable a wide range of high-temperature and high-pressure applications. Our GPHE can run using thinner and fewer plates, which translates to lower raw material usage, reduced energy consumption, and a longer operational life.

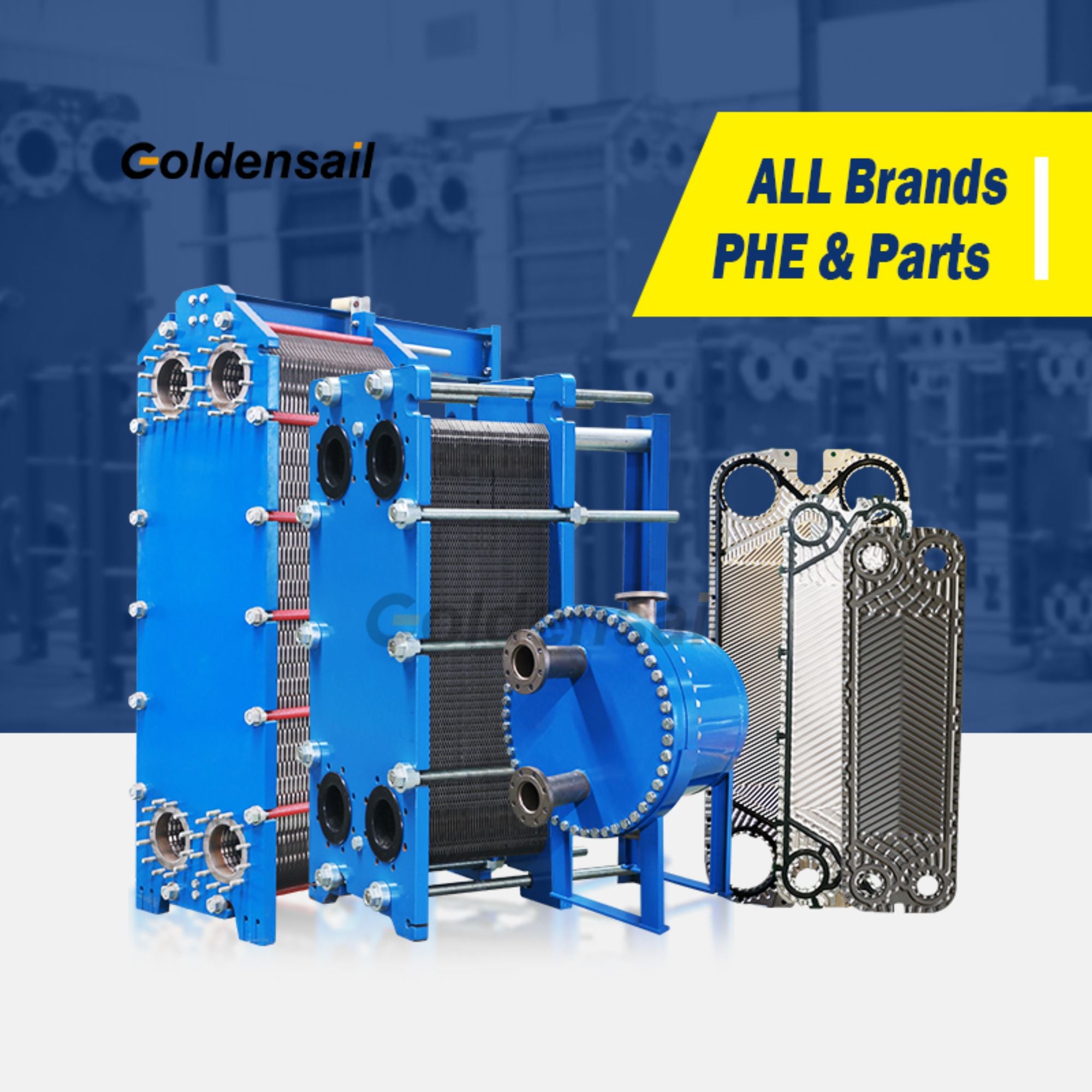

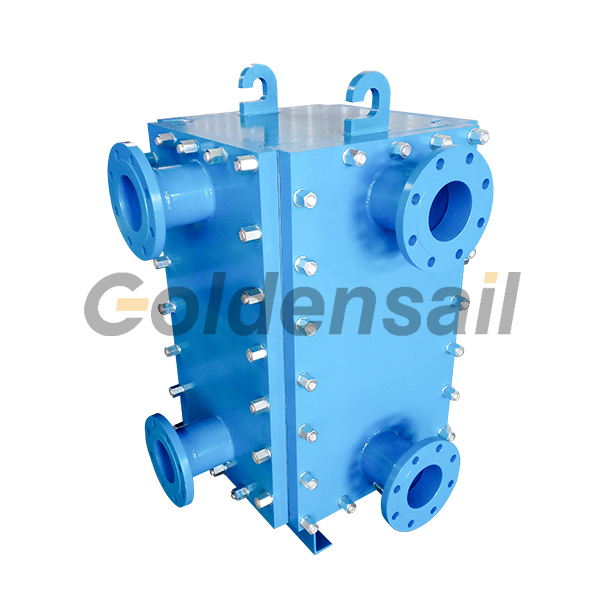

Other types of plate heat exchangers

heat exchanger plates and gaskets

  • Parameter
  • Process flow
  • Video
  • Related products
  • Inquiry
Parameter

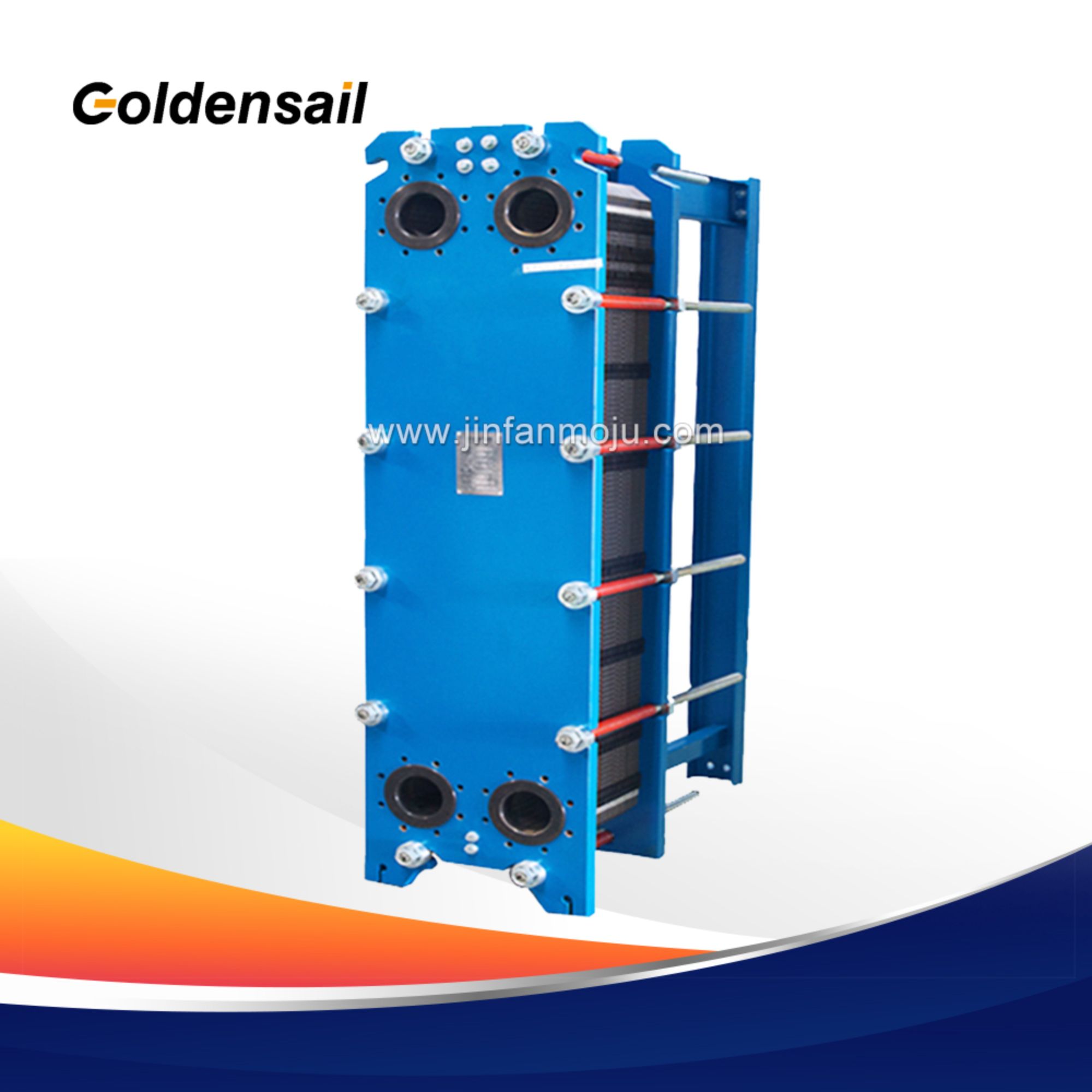

High Temperature, High Pressure GPHE

In recent years, PHE Plate Heat Exchangers have gained popularity owing to their high efficiency and compact size. The GPHE is constructed by stacking multiple layers of corrugated plates, forming a network of channels through which liquids flow. This design maximizes efficiency, enabling the units to be smaller and requiring less fluid content compared to shell-and-tube units of equivalent capacity.

Heat exchangers typically have a maximum operating temperature and pressure threshold. Exceeding this limit necessitates specialized design and material considerations. High-temperature high pressure heat exchangers face issues with corrosion, material degradation, performance decline, and limited lifespan. With 30+ years of experience and know-how within Plate Heat Exchangers, JINFAN's GPHE unique design is more suitable for high-pressure and high-temperature conditions. Our innovative heat exchanger plate designs enable a wide range of high-temperature and high-pressure applications. Our GPHE can run using thinner and fewer plates, which translates to lower raw material usage, reduced energy consumption, and a longer operational life.

Advantages

✅ High heat transfer coefficient by a turbulence flow

✅ Flexibility for future expansion or modification

✅ Advanced plate design technology for special or difficult applications

High Temperature, High Pressure PHE Plate & Gasket Material

Plate Material Suitable Media
Stainless Steel (304/316) Pure Water, River Water, Edible Oil, Mineral Oil
Ti, Ti-Pd Seawater, Brine, Salt Substance
20Cr,18Ni,6Mo (254MO) Dilute Sulfuric Acid, Dilute Salt Substance Aqueous Solution, Inorganic Aqueous Solution
Ni High Temperature, High Density Caustic Soda
Hastelloy (C276, D205, B2G) Concentrated Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid
Gasket Material Operating Temperature Suitable Media
NBR -20℃ to +110℃ Water, sea water, mineral oil, salt, brine
EPDM -50℃ to +150℃ Hot water steam, acid, alkali
HNBR -15℃ to +160℃ High temperature, mineral oil, water
VITONA/VITONG/FKM -35℃-+180℃ High temperature, high resistance, strong oxidant, oil, acid, alkali, etc

Applications

SHOW MORE ▼

Process flow
high temperature high pressure phe heat exchanger price-1

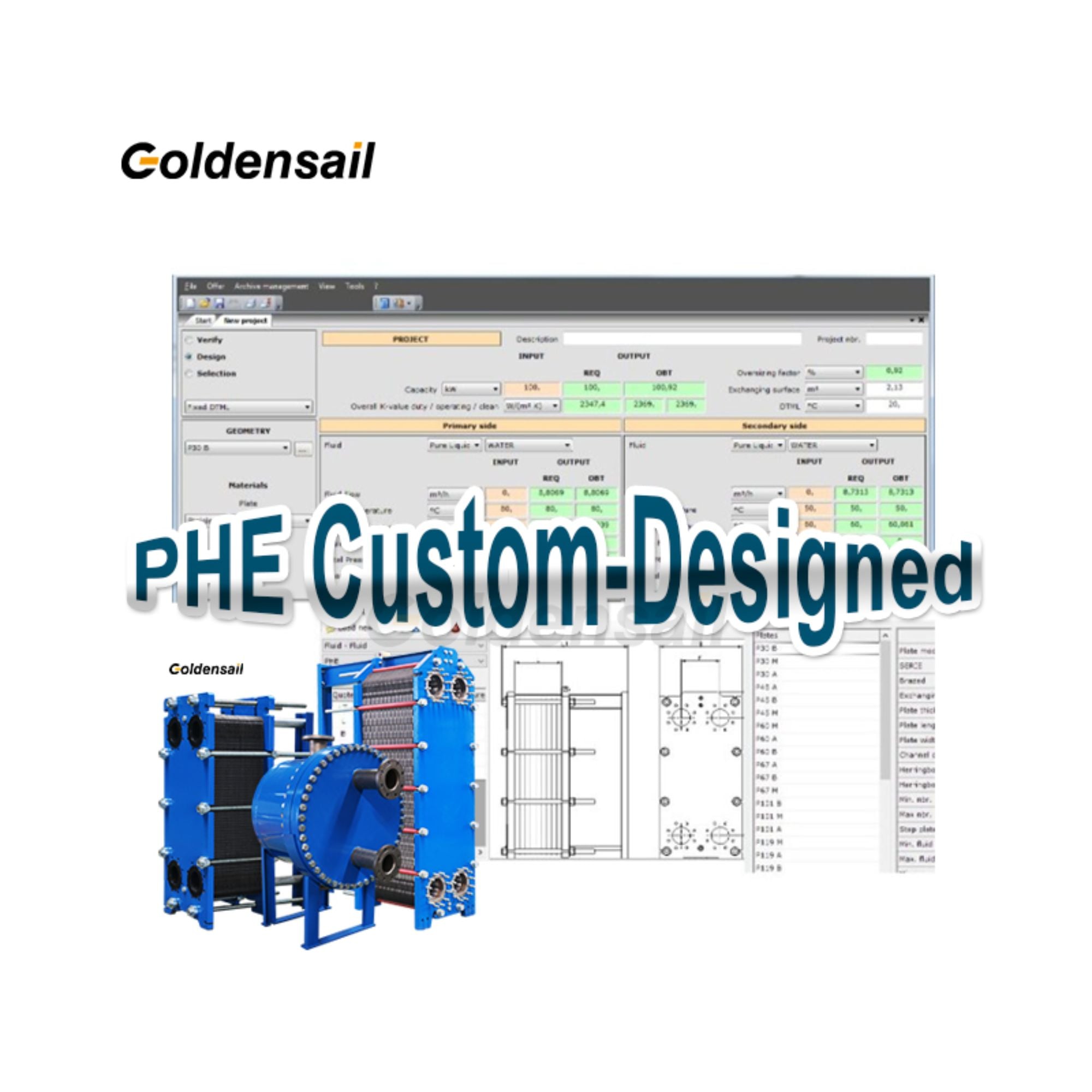

1.Designing

high temperature high pressure phe heat exchanger price-2

2.Process Plant

high temperature high pressure phe heat exchanger price-3

3.Warehouse
