At JINFAN, we have a wide range of AL plate heat exchanger plates in stock, such as JFT20M JFT40M JFT50M. Material: ss316L, ss304, Ti, SMO, Hastelloy, etc.

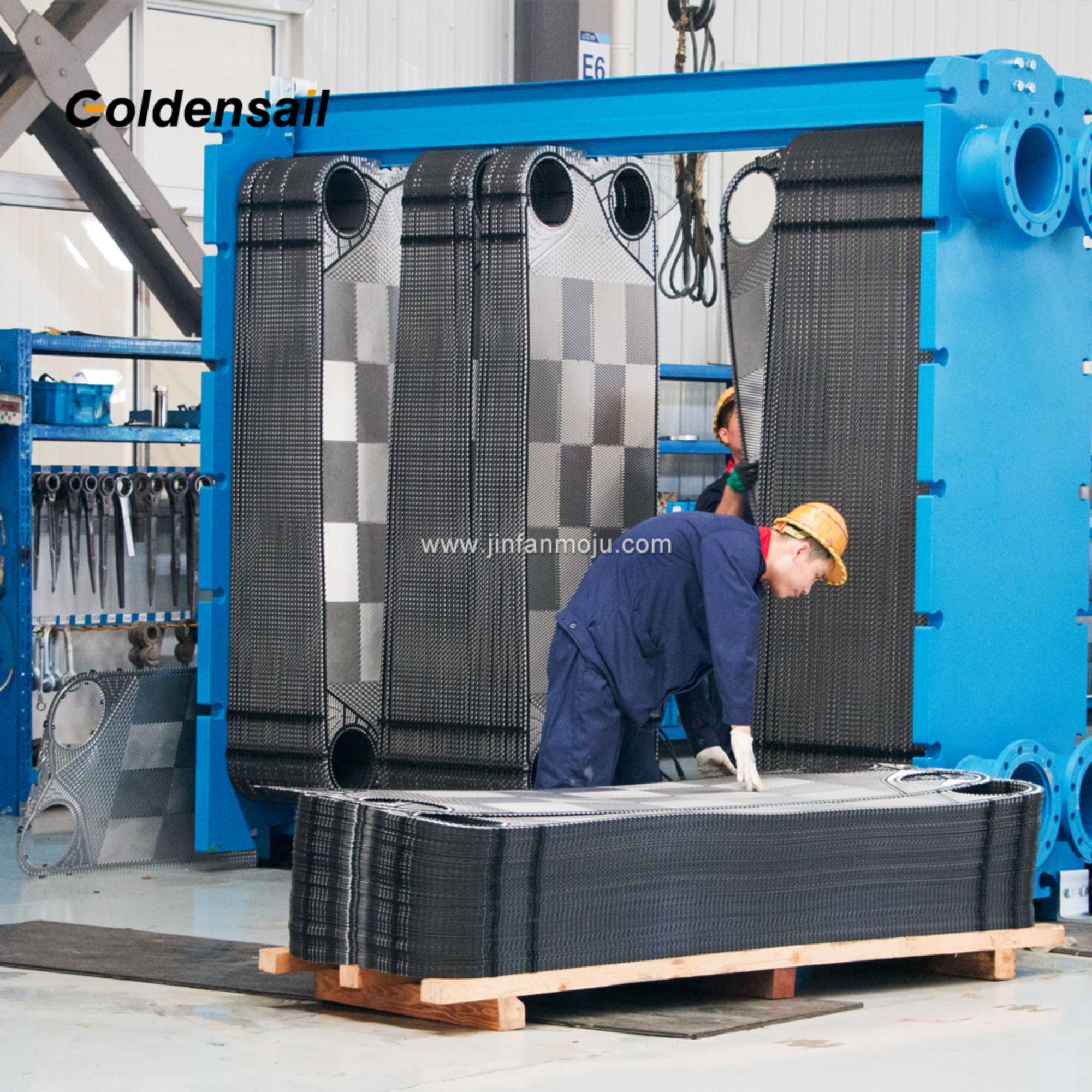

In a Gasketed Plate Heat Exchanger, specially designed sealing gaskets located between the plates direct the fluids so that the hot and cold fluids pass counter-currently in alternating channels. The plate pack is assembled between a frame plate and a pressure plate, and compressed by tightening bolts fitted between these plates.
The largest manufacturing facility for PHE heat exchanger plates and gaskets in CHINA. Our JINFAN PHE plates and gaskets are designed to meet the same quality standards as the original equipment. They are fully compatible with AL Heat Exchangers, guaranteeing exceptional performance and long-lasting durability.

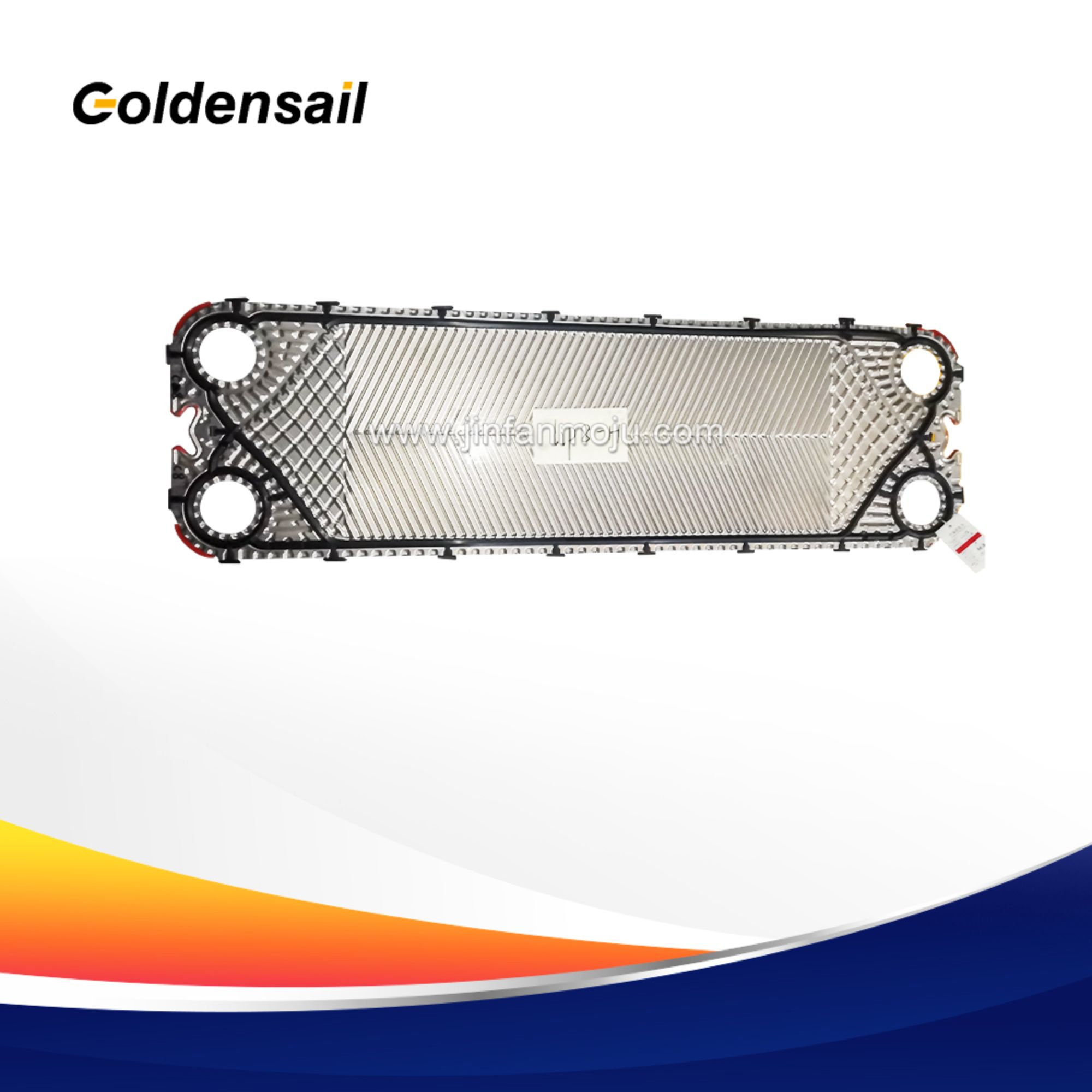

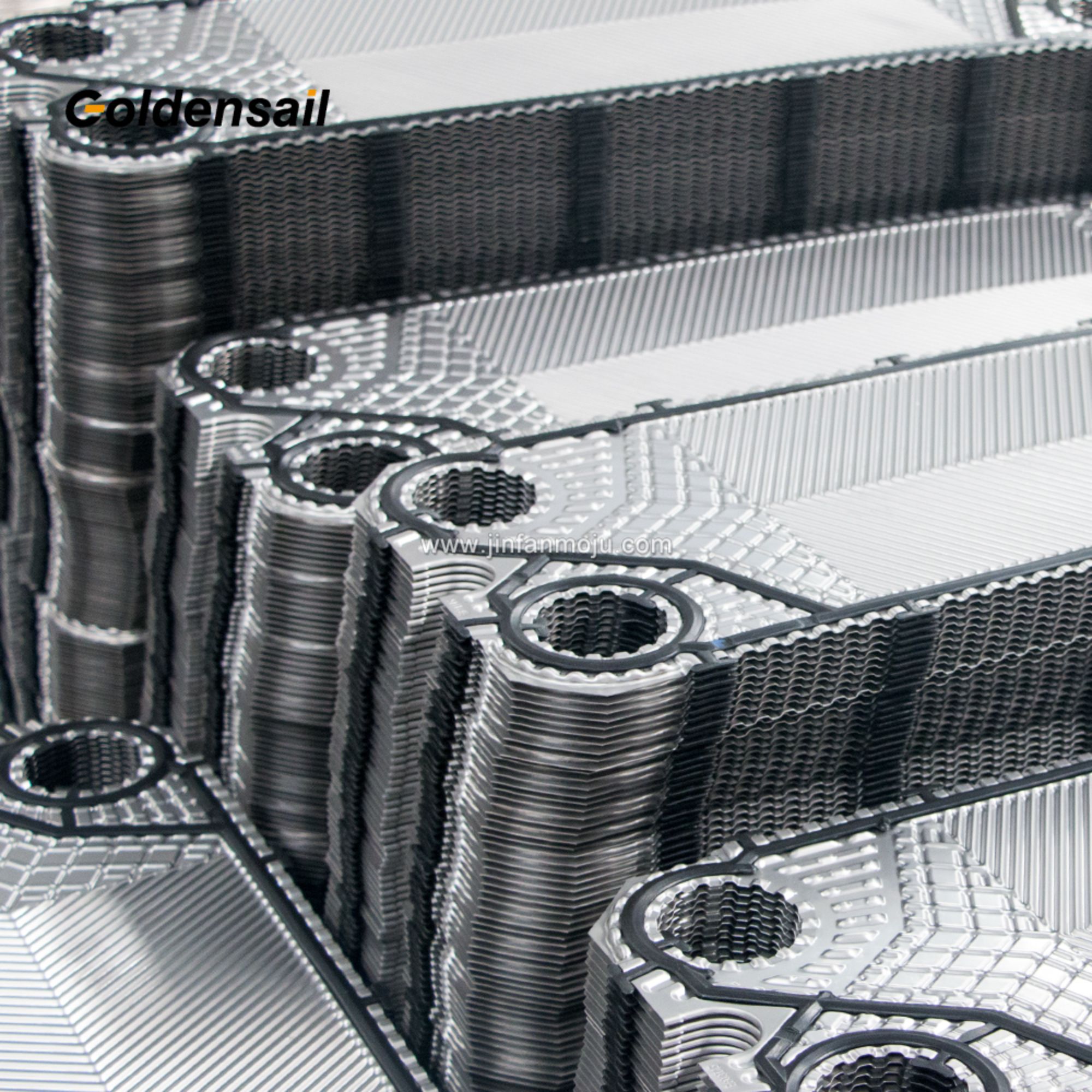

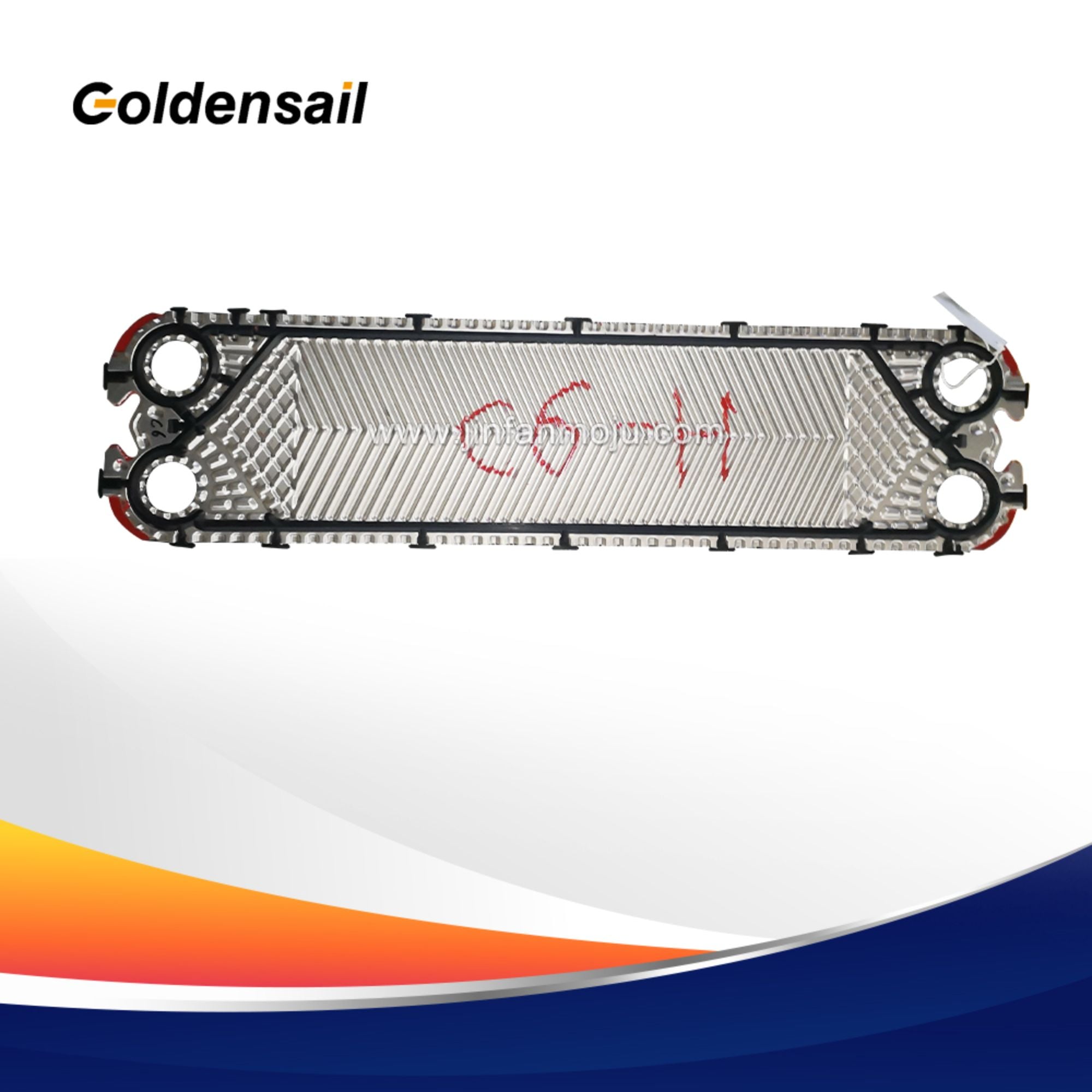

Heat Exchanger Plate & Gasket Details Show
At JINFAN, we specialize in providing gaskets and plates, spare parts, and services for a wide range of international Plate Heat Exchanger brands.
| FM3 | FM6B | FM6M | FM6MX | FM10B | FM10M | FM15E | FM15B |
| FM15M | FMX25M | FMX25B | FM30 | FMA30S | FMA30W | FMA30M | FM6MW |
| FM10BW | FMK15BW | FAM10 | FA10B | FA15B | FAM20B | FA20B | FAM20 |
| FAK20 | FAX30B | FAX30BW | FClip6 | FClip8 | FClip10 | FClip15 | JFTL6B |
| JFTS6M | JFTL10B | JFTL10P | JFTL15B | JFT20M | JFT20MW | JFT20B | JFT20P |
| JFTS20M | JFT20S | FP16 | FP26 | FP32 | FP36 |
| Plate Material | Suitable Media |
|---|---|
| Stainless Steel (304/316) | Pure Water, River Water, Edible Oil, Mineral Oil |
| Ti, Ti-Pd | Seawater, Brine, Salt Substance |
| 20Cr, 18Ni, 6Mo (254MO) | Dilute Sulfuric Acid, Dilute Salt Substance Aqueous Solution, Inorganic Aqueous Solution |
| Ni | High Temperature, High Density Caustic Soda |
| Hastelloy (C276, D205, B2G) | Concentrated Sulfuric Acid, Hydrochloric Acid, Phosphoric Acid |
| Gasket Material | Operating Temperature | Suitable Media |
|---|---|---|
| NBR | -20℃ to +110℃ | Water, Sea Water, Mineral Oil, Salt, Brine |
| EPDM | -50℃ to +150℃ | Hot Water Steam, Acid, Alkali |
| HNBR | -15℃ to +160℃ | High Temperature, Mineral Oil, Water |
| VITON(A/FKM) | -35℃ to +180℃ | High Temperature, High Resistance, Strong Oxidants, Oil, Acid, Alkali |
Unable to find the product model or material you require? feel free to email us at [email protected], and we will be happy to assist you further!
We are a professional manufacturer of plate heat exchangers, plates, gaskets, mould with 30+ years' experience. We supply all brands of plate heat exchangers and spares including AL, Sondex, Tranter, GEA, APV, Funke, Hisaka, Thermowave, Vicarb, etc. Our Quality is assured with ISO9001 Certification. For the price list, contact us now！
